14,988
26278
CAR CONNECTION INC.
1GCWGFCF4F1276807

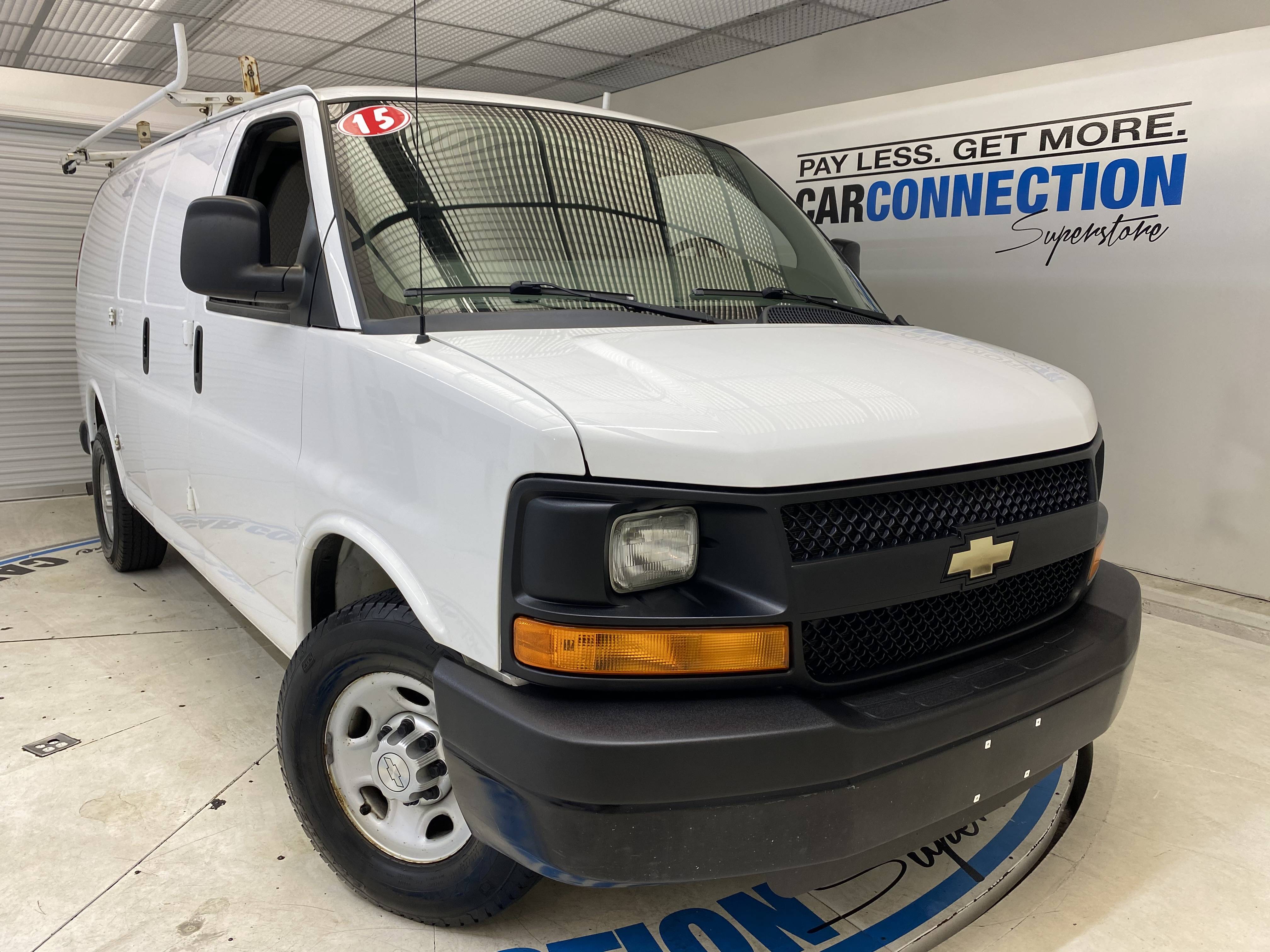

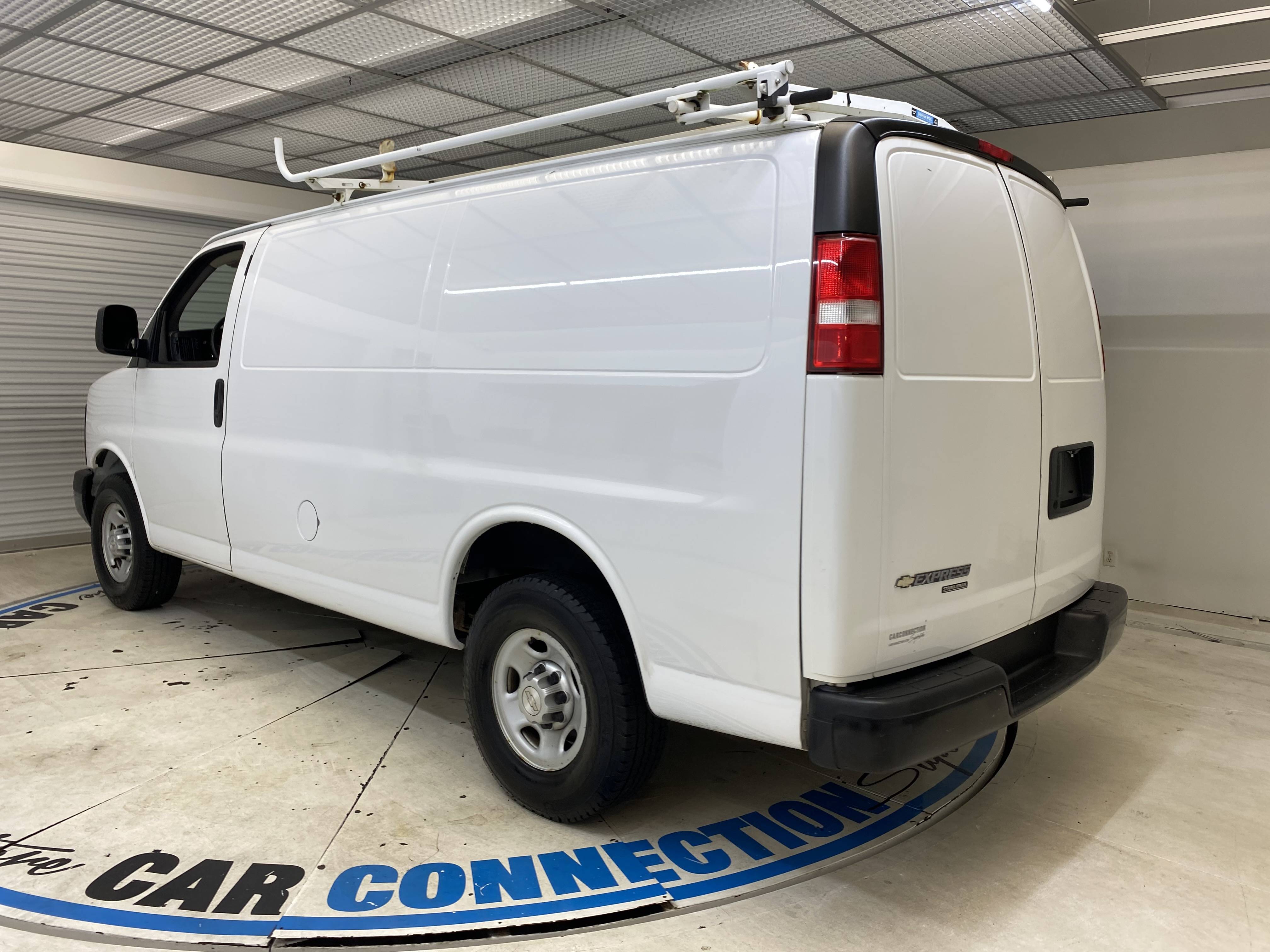

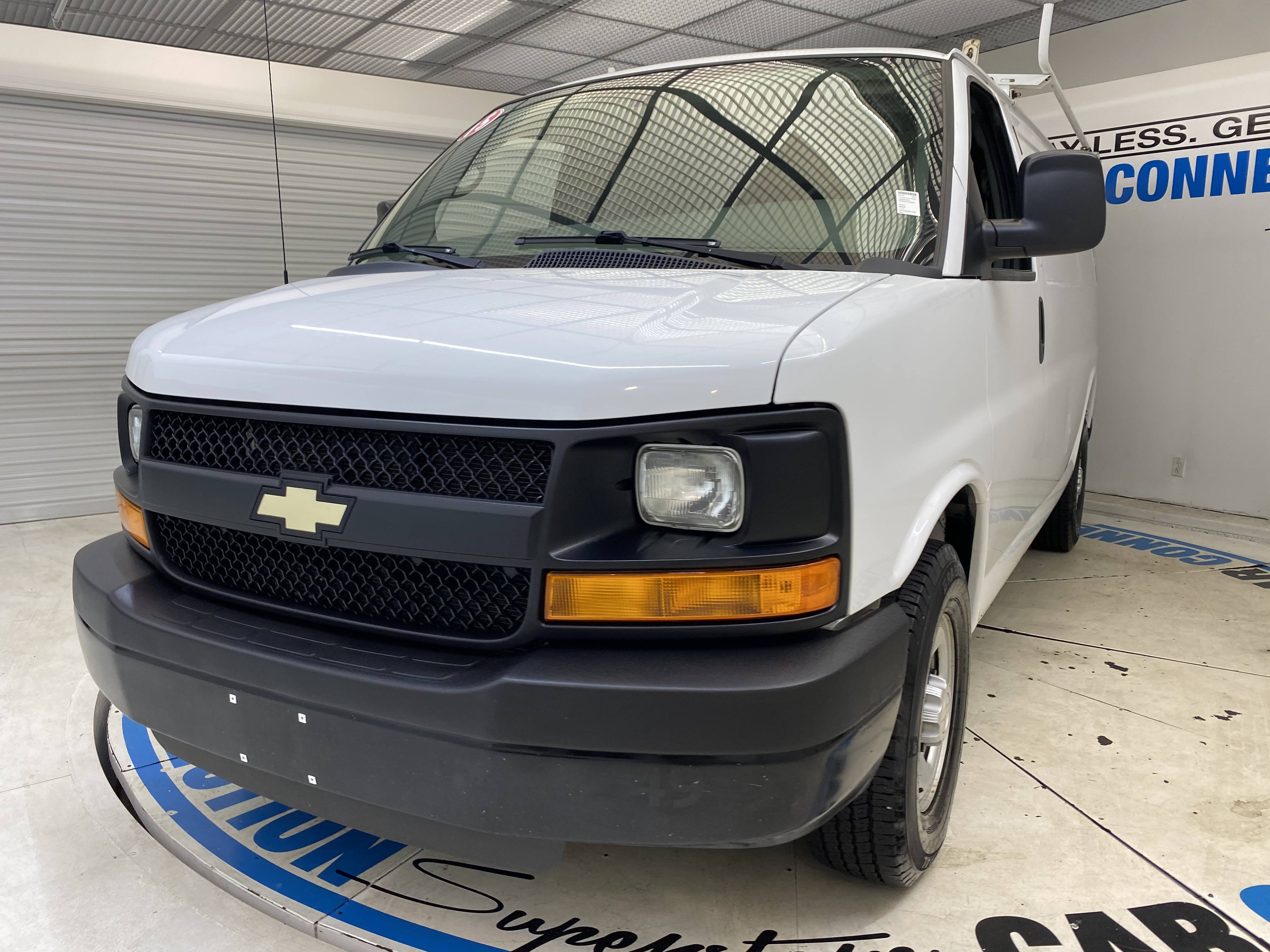

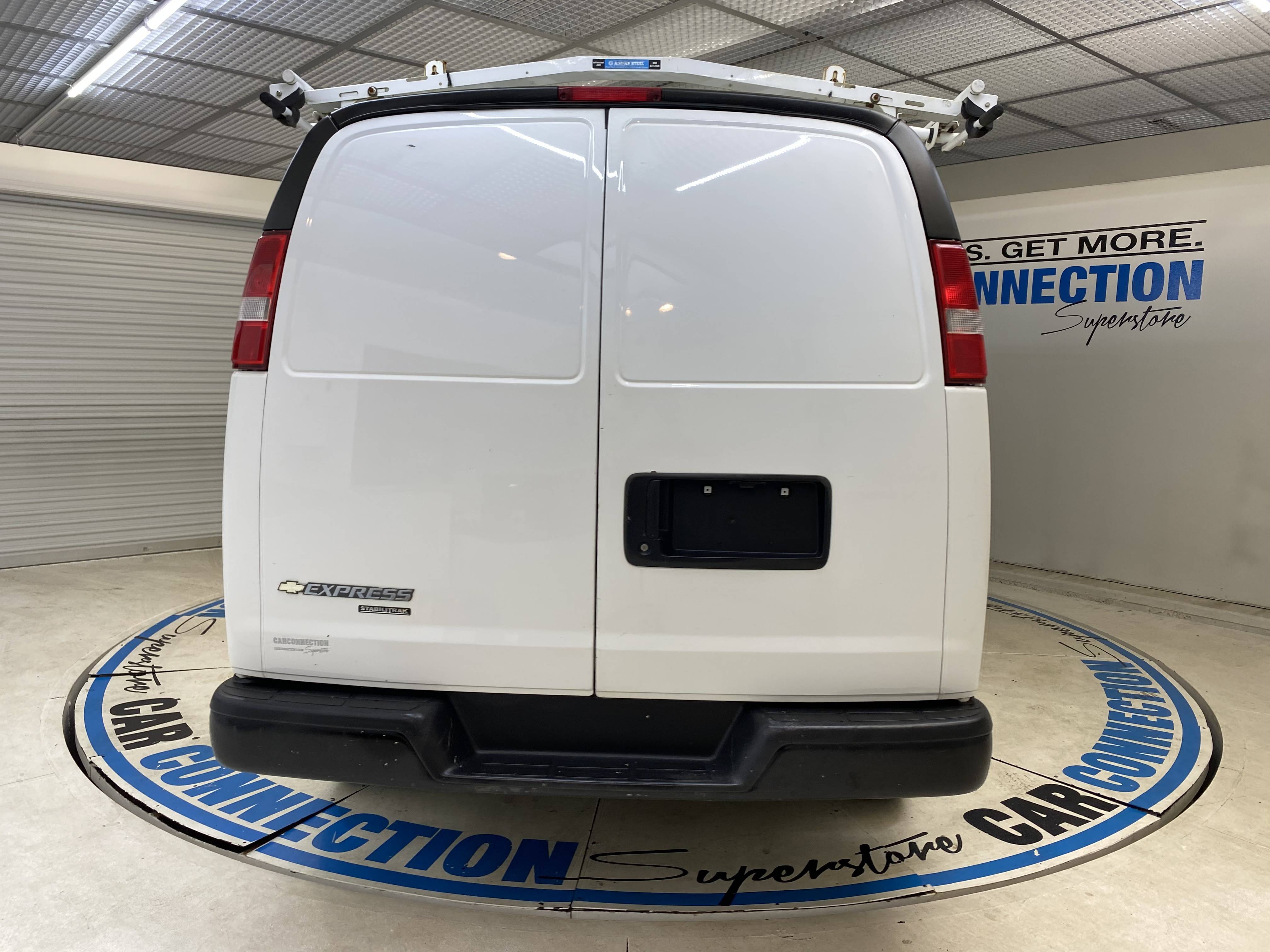

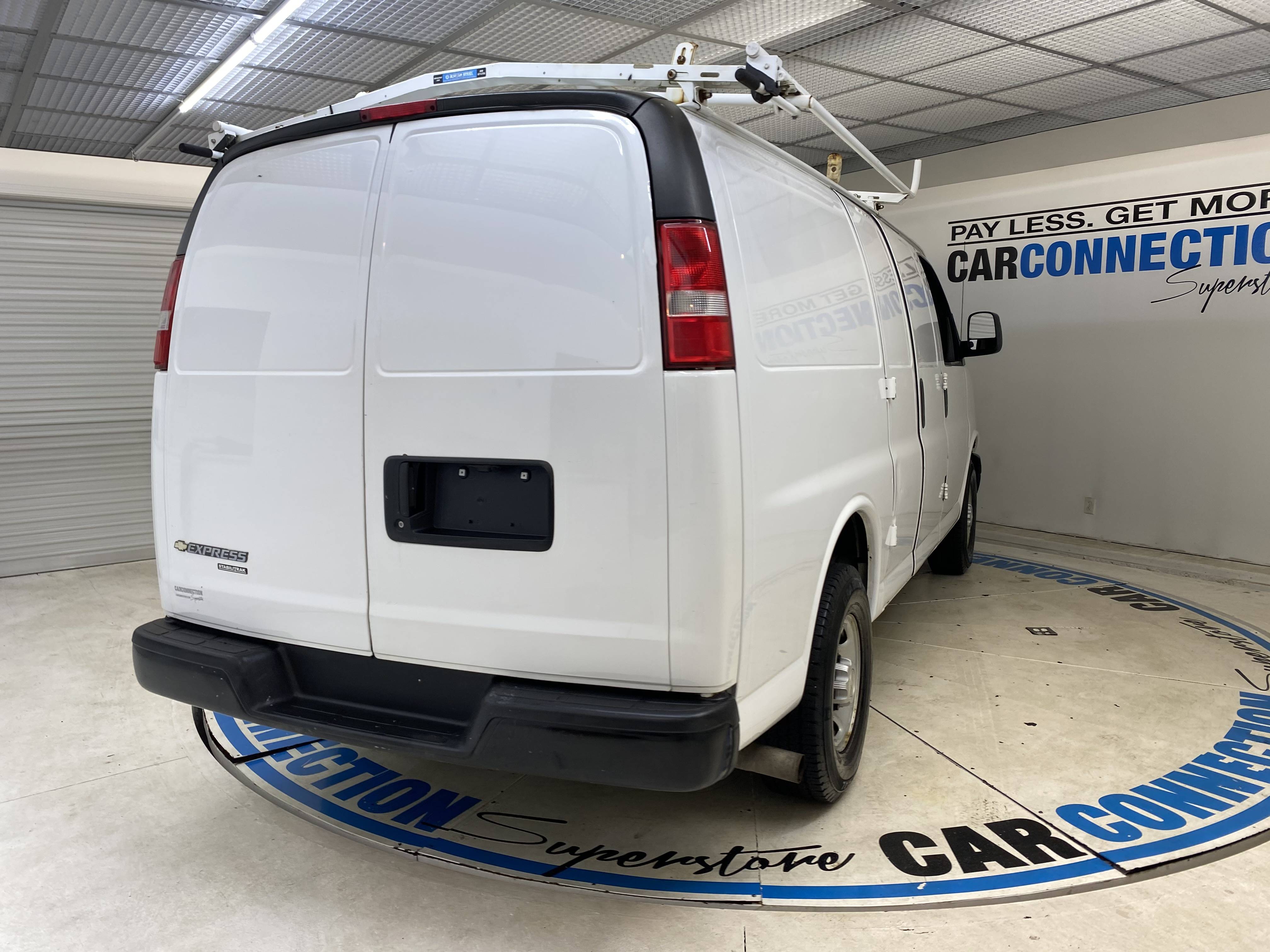

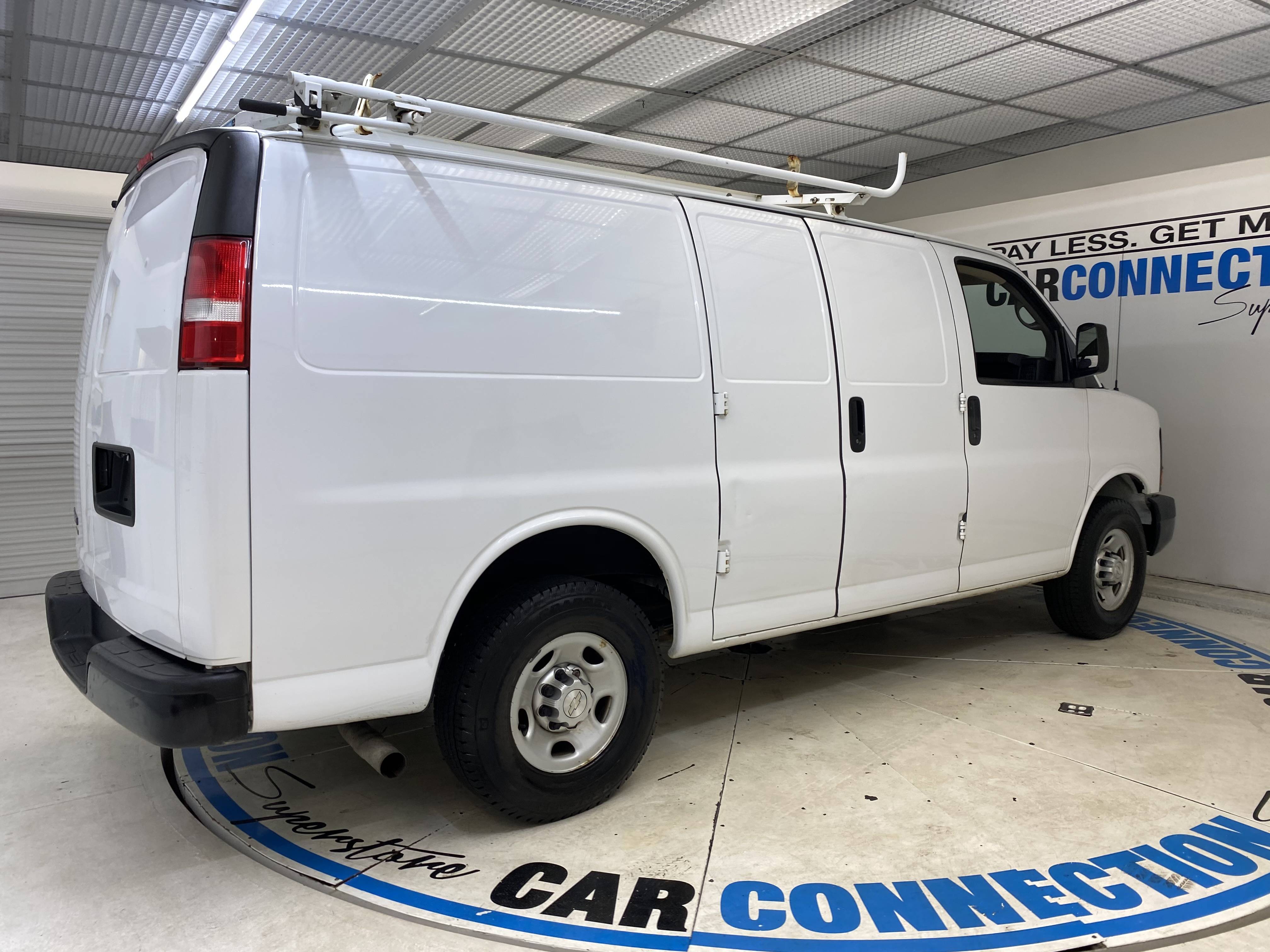

CHEVROLET EXPRESS CARGO VAN 2015
14988.0000
General Information
No description available
- Standard Equipment
- Optional Equipment
- Additional Specifications
Alternator, 105 amps
Assist handle, front passenger
Audio system, radio provisions only. Includes alarm warning chimes, radio wiring harness, radio antenna and 2 front door speakers
Battery, 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
Body, standard
Brake/transmission shift interlock, for automatic transmissions
Brakes, 4-wheel antilock, 4-wheel disc
Bumpers, front and rear painted Black with step-pad (Deleted when (ZR7) Chrome Appearance Package is ordered.)
Console, engine cover with open storage bin

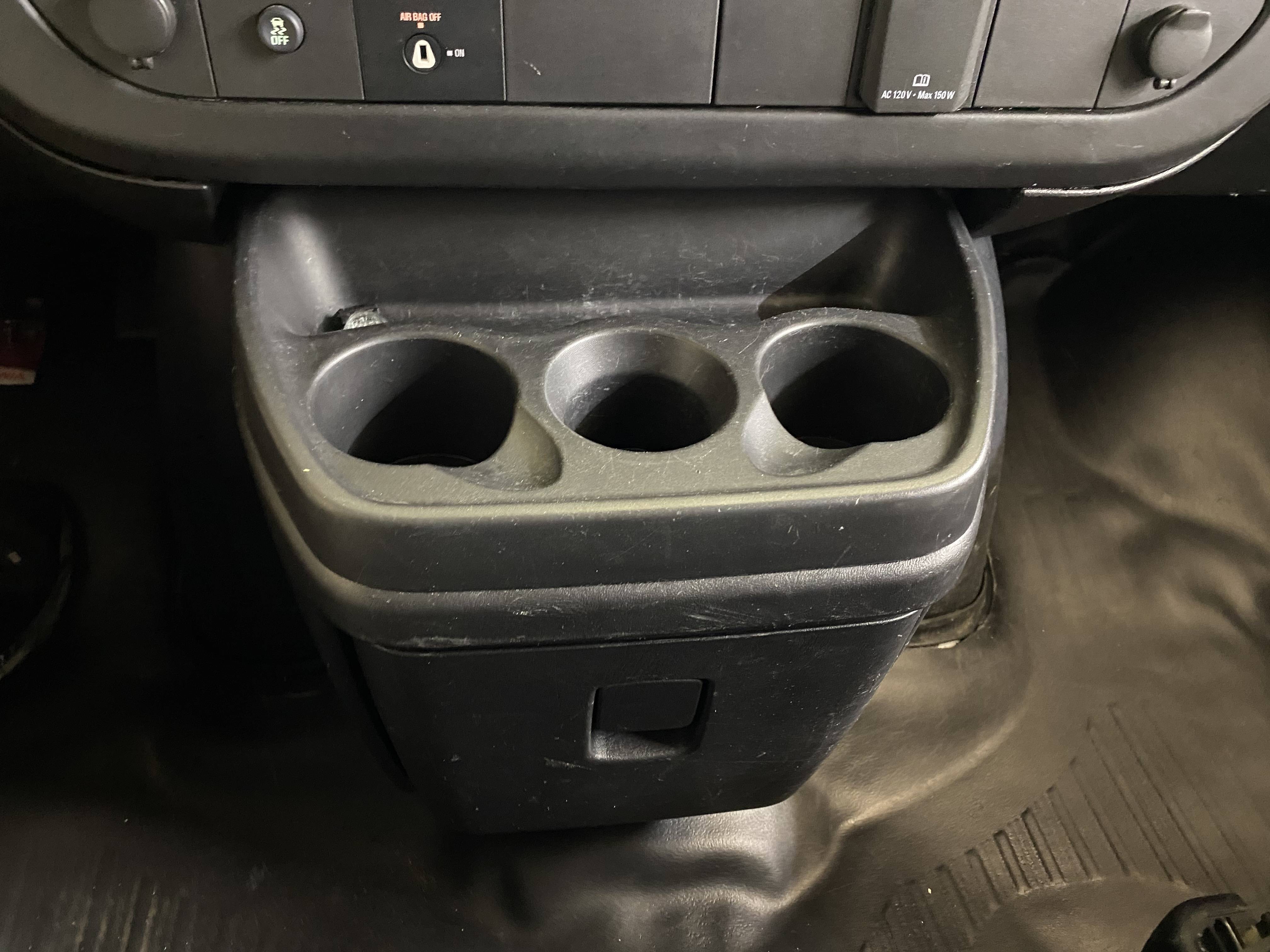

Cup holders, 3 on the engine console cover
Daytime Running Lamps
Defogger, side windows
Door beams, steel-side
Door, swing-out passenger-side, 60/40 split
Engine, Vortec 4.8L V8 SFI (285 hp [212.5 kW] @ 5400 rpm, 295 lb-ft of torque [398.3 N-m] @ 4600 rpm) (Includes external engine oil cooler. Reference the Engine/Axle page for availability.)
Exhaust, aluminized stainless-steel muffler and tailpipe
Floor covering, full-length Black rubberized-vinyl (Not available with (YF2) Ambulance Package or (RFM) rear floor covering delete.)
Frame, full-length box ladder-type
Fuel tank capacity, mid-frame and approximately 31 gallons (117.3L)
Glass, Solar-Ray light-tinted, all windows

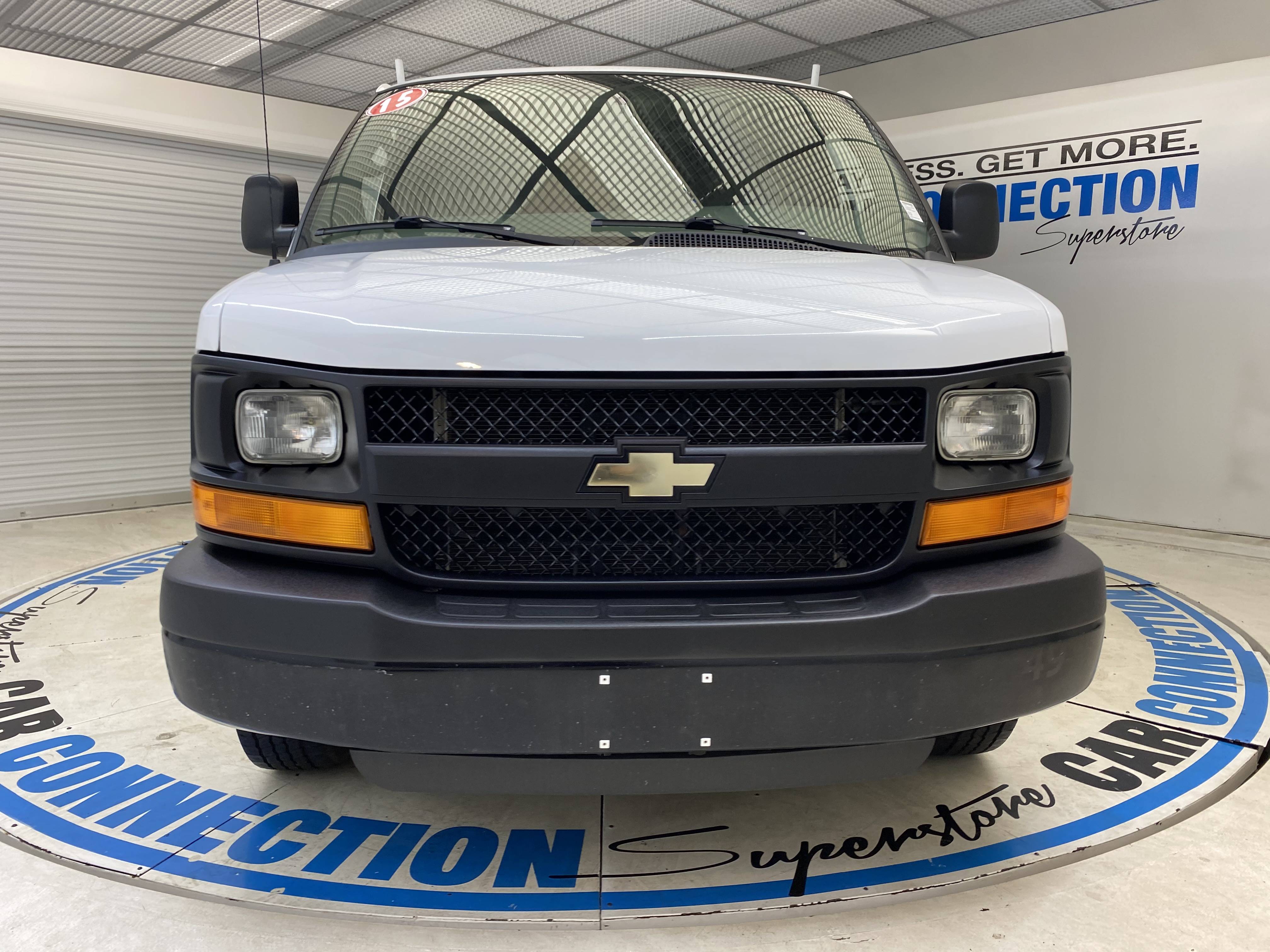

Grille, Black composite with single rectangular halogen headlamps (Not available with (ZR7) Chrome Appearance Package.)
GVWR, 8600 lbs. (3901 kg) (Standard on CG23405 or CG23705 models. Reference the Engine/Axle page for availability.)
Headlamps, single halogen (Not available with (ZR7) Chrome Appearance Package.)
Headliner, cloth, over driver and passenger

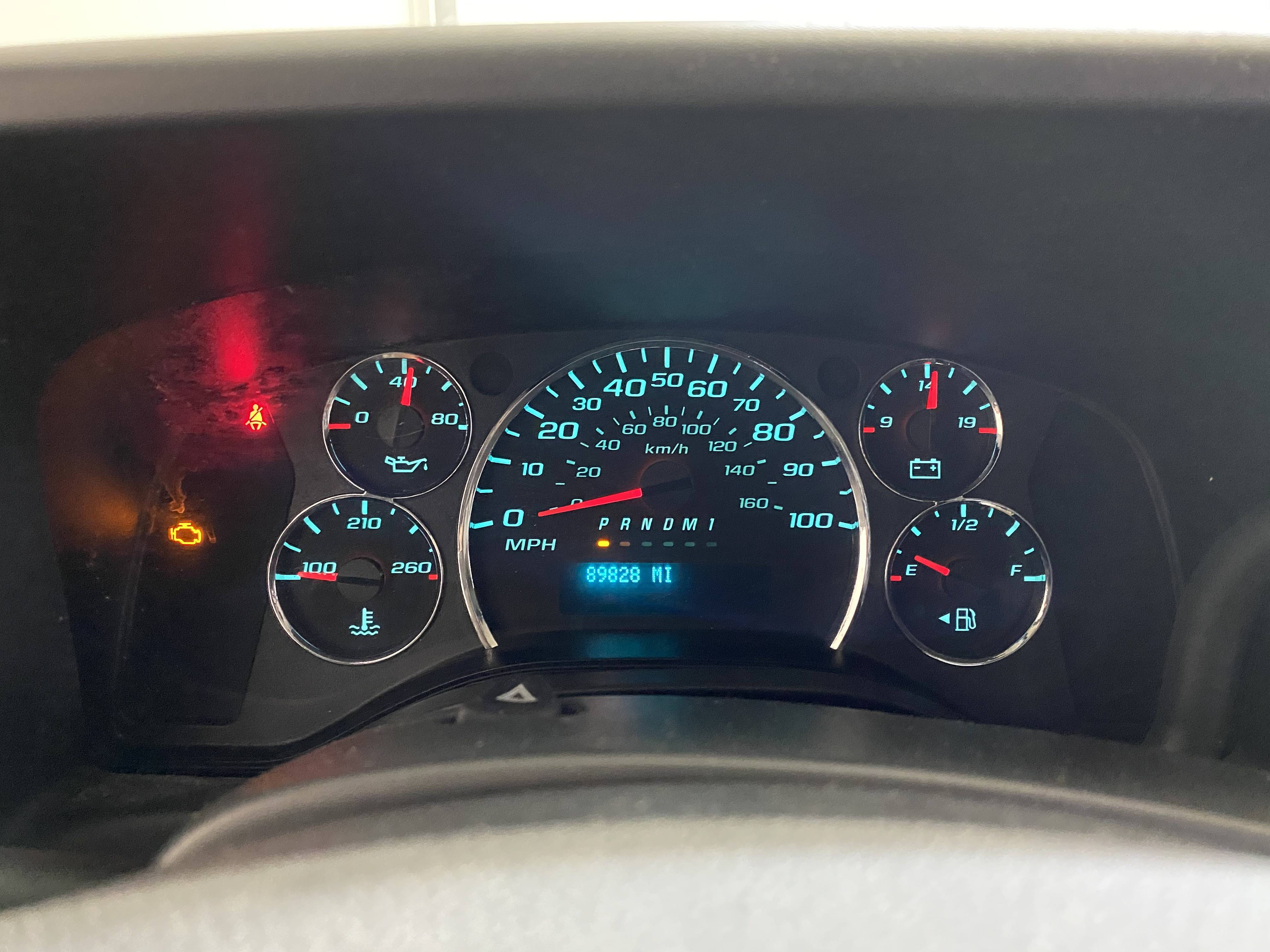

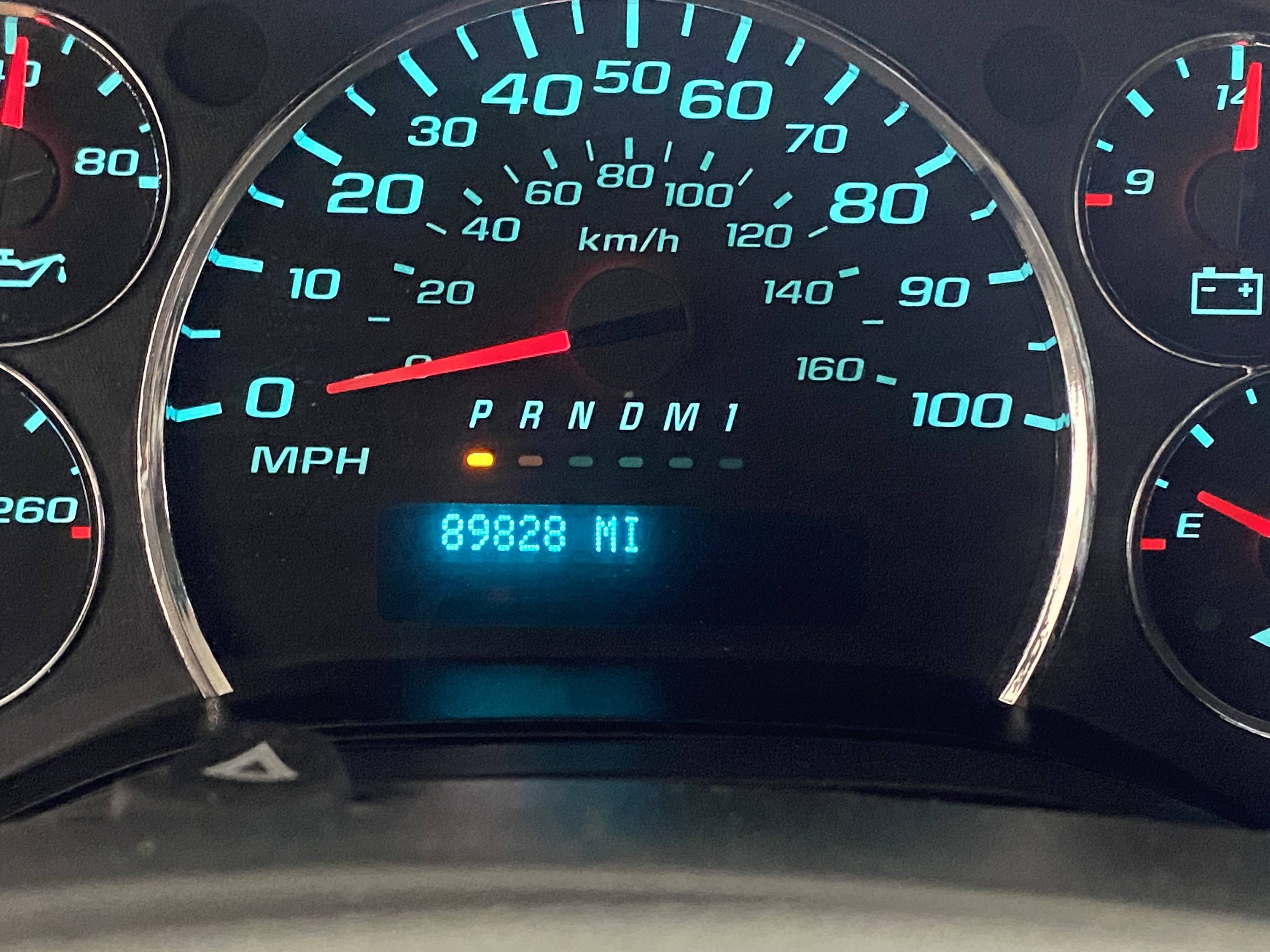

Instrumentation, analog with speedometer, odometer with trip odometer, fuel level, voltmeter, engine temperature and oil pressure
License plate kit, front

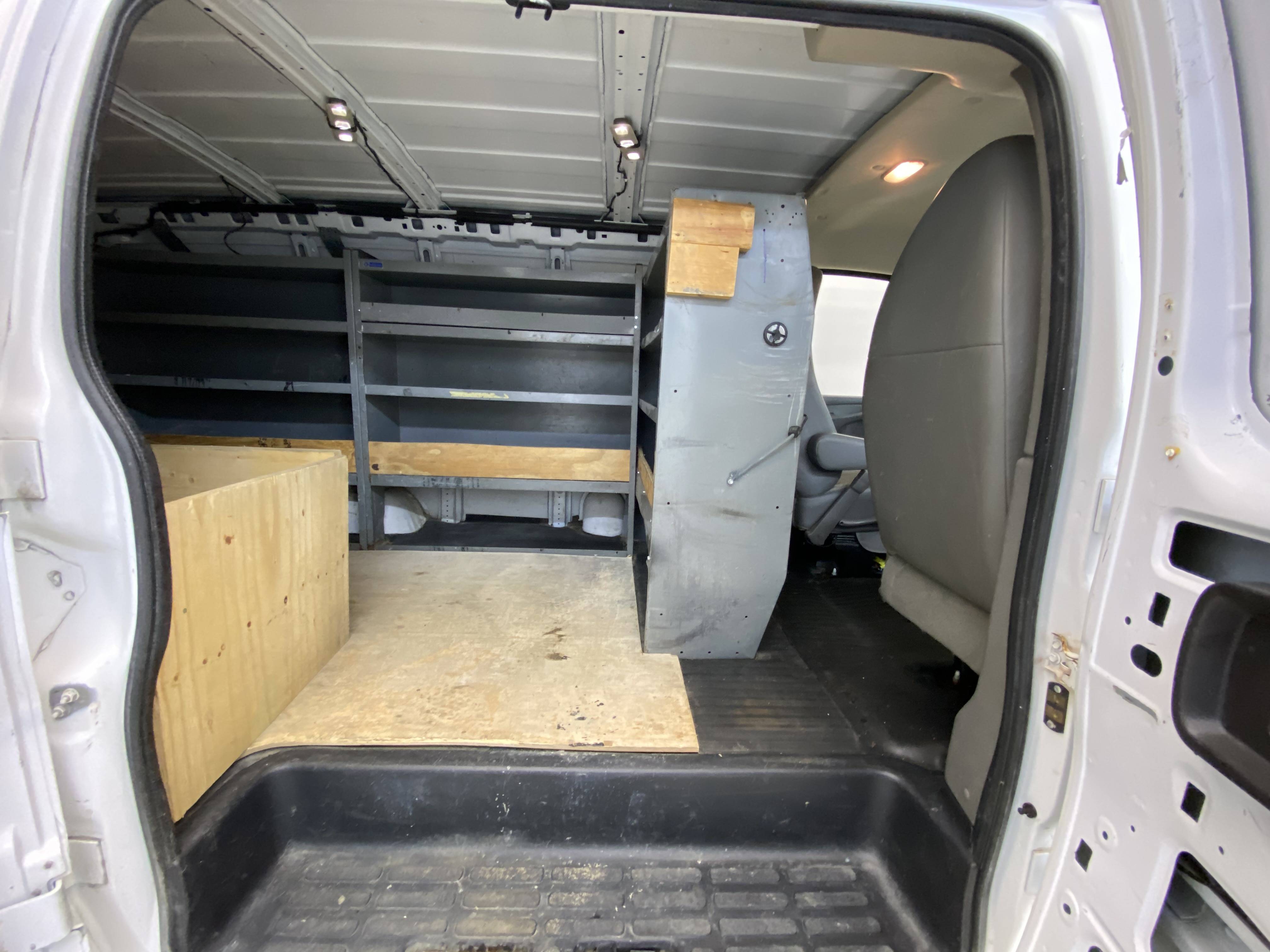

Lighting, interior with 4 dome lights 1 overhead and 3 LED's on cross members in cargo area, includes defeat switch and door handle-activated switches (When (UF2) Express Access Enhanced Lighting Package is ordered, 2 LED lights are replaced with fluorescent lights.)
Mirrors, outside manual, Black
Oil life monitor
Rear axle, 3.42 ratio (Required with (L20) Vortec 4.8L V8 SFI engine, (L96) Vortec 6.0L V8 SFI FlexFuel or (LC8) Gaseous 6.0L V8 SFI engine. Reference the Engine/Axle page for availability.)
Rear wheel drive
StabiliTrak, traction assistance and vehicle stability enhancement system

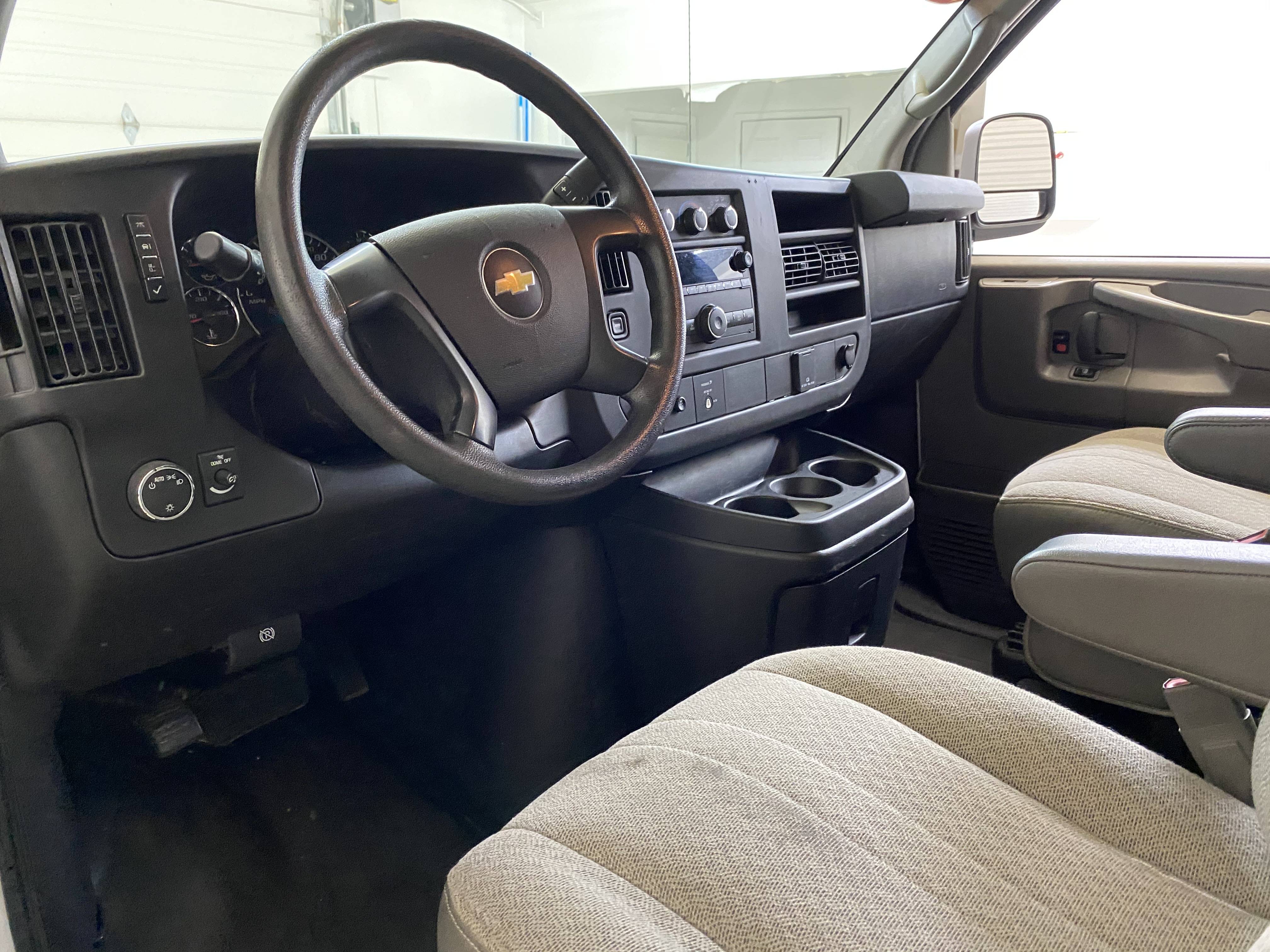

Steering wheel, steel sleeve column with theft-deterrent locking feature, Black
Steering, power
Suspension, front independent with coil springs and stabilizer bar
Suspension, rear hypoid drive axle with multi-leaf springs
Theft-deterrent system, vehicle, PASS-Key III
Tires, front LT245/75R16E all-season, blackwall
Tires, rear LT245/75R16E all-season, blackwall
Transmission oil cooler, external (Included and only available with (L20) Vortec 4.8L V8 SFI engine or (L96) Vortec 6.0L V8 SFI FlexFuel engine.)
Trim panels, hinged rear side doors and hinged rear doors
Visors, driver and front passenger, cloth, padded
Warning tones, headlamp on and key-in-ignition
Wipers, front intermittent wet-arm with pulse washers
AIR CONDITIONING, SINGLE-ZONE MANUAL

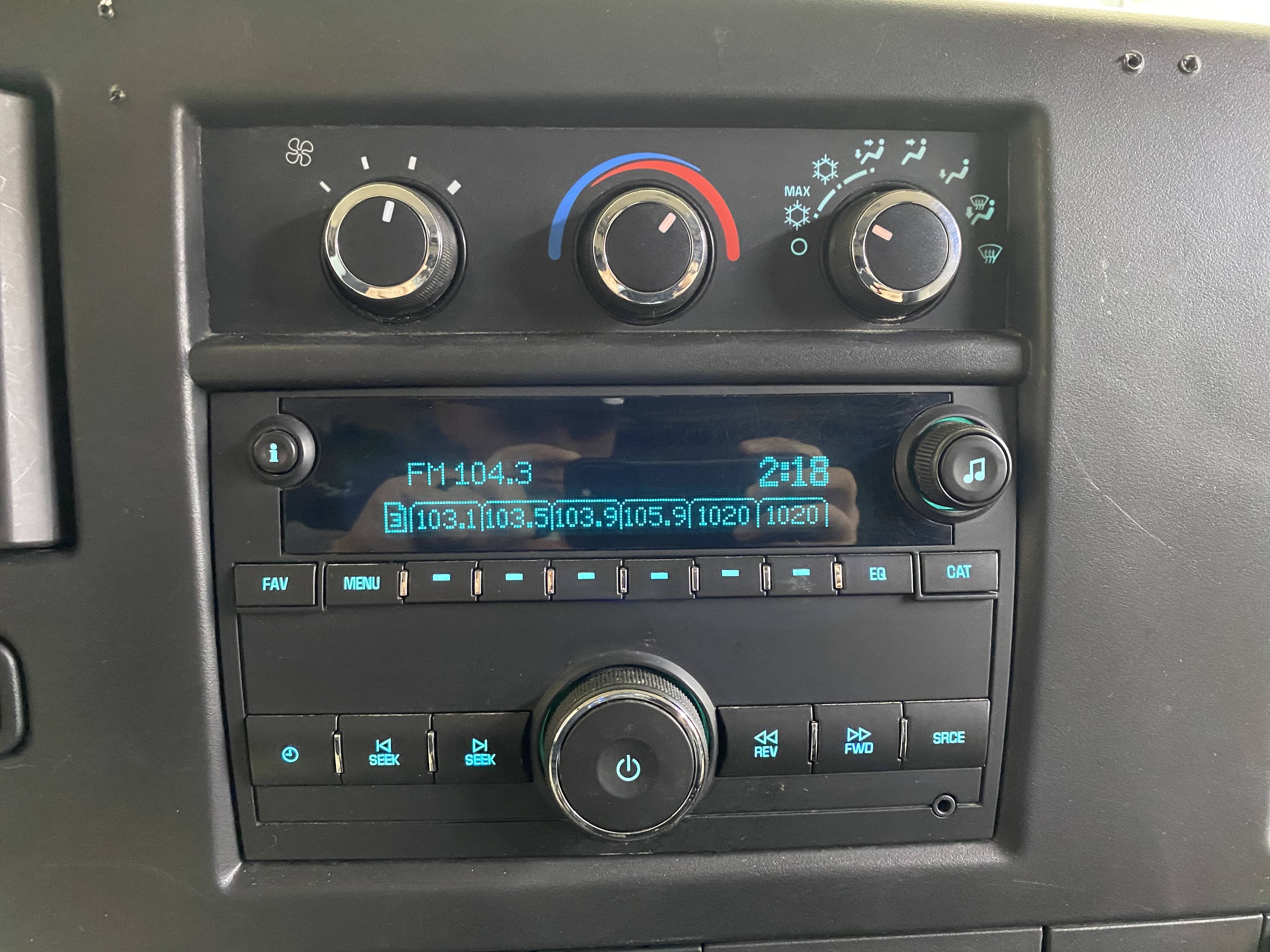

AUDIO SYSTEM, AM/FM STEREO WITH MP3 PLAYER
BODY, STANDARD
CONSOLE, ENGINE COVER WITH SWING-OUT STORAGE BIN
DOOR, SWING-OUT PASSENGER-SIDE, 60/40 SPLIT
EMISSIONS, CONNECTICUT, DELAWARE, MAINE, MARYLAND, MASSACHUSETTS, NEW JERSEY, NEW YORK, OREGON, PENNSYLVANIA, RHODE ISLAND, VERMONT AND WASHINGTON STATE REQUIREMENTS
ENGINE, VORTEC 4.8L V8 SFI
MEDIUM PEWTER, CUSTOM CLOTH SEAT TRIM
PAINT, SOLID
PREFERRED EQUIPMENT GROUP
REAR AXLE, 3.42 RATIO
SEATING ARRANGEMENT, DRIVER AND FRONT PASSENGER HIGH-BACK BUCKETS,
SEATS, FRONT BUCKET WITH CUSTOM CLOTH TRIM
SUMMIT WHITE
TIRE, SPARE LT245/75R16E ALL-SEASON, BLACKWALL

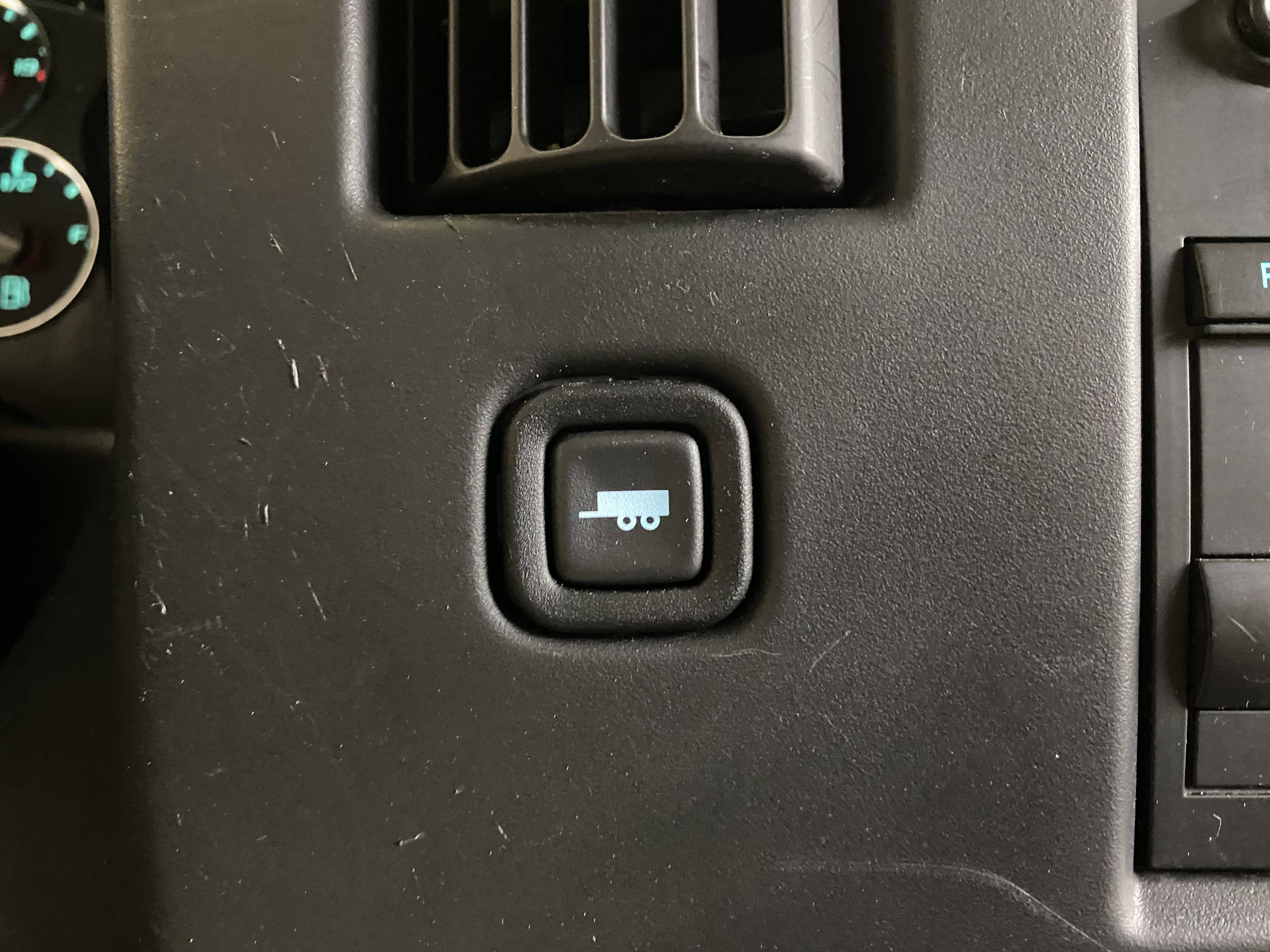

TRAILER WIRING, 7-PIN SEALED CONNECTOR
TRANSMISSION, 6-SPEED AUTOMATIC, HEAVY-DUTY, ELECTRONICALLY CONTROLLED
| Axle Capacity - Front | 4100 lbs |
|---|---|
| Axle Capacity - Rear | 5360 lbs |
| Axle Ratio (:1) - Rear | 3.42 |
| Axle Type - Front | Independent |
| Axle Type - Rear | Semi-Floating |
| Body Code | ZW9 |
| Body Style | Cargo Van |
| Brake ABS System | 4-Wheel |
| Brake Type | Pwr |
| Cargo Area Length @ Floor to Console | 153.60 in |
| Cargo Area Length @ Floor to Seat 1 | 124.60 in |
| Cargo Area Width @ Beltline | - TBD - in |
| Cargo Box (Area) Height | 52.90 in |
| Cargo Box Width @ Wheelhousings | 52.70 in |
| Cargo Volume | 239.7 ft³ |
| Curb Weight - Front | 3026 lbs Range: 3026lbs - 3058lbs |
| Curb Weight - Rear | 2362 lbs Range: 2362lbs - 3147lbs |
| Dead Weight Hitch - Max Tongue Wt. | 500 lbs |
| Dead Weight Hitch - Max Trailer Wt. | 5000 lbs |
| Disc - Front (Yes or ) | Yes |
| Disc - Rear (Yes or ) | Yes |
| Displacement | 4.8L/293 |
| Drivetrain | Rear Wheel Drive |
| Engine Oil Cooler | Yes |
| Engine Order Code | L20 |
| Engine Type | Gas V8 |
| Fifth Gear Ratio (:1) | 0.85 |
| First Gear Ratio (:1) | 4.03 |
| Fourth Gear Ratio (:1) | 1.15 |
| Frame Type | Ladder |
| Front Brake Rotor Diam x Thickness | 12.8 x 1.5 in |
| Front Head Room | 39.80 in |
| Front Hip Room | 65.50 in |
| Front Leg Room | 41.30 in |
| Front Shoulder Room | 68.80 in |
| Front Tire Capacity | 2205 lbs |
| Front Tire Size | LT245/75R16E |
| Front Wheel Material | Steel |
| Front Wheel Size | 16 x 6.5 in |
| Fuel System | Electronic Fuel Injection |
| Fuel Tank Capacity, Approx | 31.0 gal |
| Gross Axle Wt Rating - Front | 4100 lbs Range: 4100lbs - 4300lbs |
| Gross Axle Wt Rating - Rear | 5360 lbs |
| Gross Combined Wt Rating | 13000 lbs Range: 13000lbs - 16000lbs |
| Gross Vehicle Weight Rating Cap | 8600 lbs |
| Ground Clearance, Front | 11.00 in |
| Ground Clearance, Rear | 7.10 in |
| Ground to Top of Load Floor | 27.80 in |
| Height, Overall | 84.60 in |
| Length, Overall w/rear bumper | 224.10 in |
| Maximum Alternator Watts | - TBD - |
| Maximum Trailering Capacity | 10000 lbs |
| Overhang, Front | 39.70 in |
|---|---|
| Overhang, Rear w/bumper | - TBD - in |
| Passenger Capacity | 2 Range: 1 - 2 |
| Rear Brake Rotor Diam x Thickness | 13.0 x 1.1 in |
| Rear Door Opening Height | 49.40 in |
| Rear Door Opening Width | 57.00 in |
| Rear Door Type | Dual Swing-out |
| Rear Tire Capacity | 3042 lbs |
| Rear Tire Size | LT245/75R16E |
| Rear Wheel Material | Steel |
| Rear Wheel Size | 16 x 6.5 in |
| Reverse Ratio (:1) | 3.06 |
| Revolutions/Mile @ 45 mph - Front | - TBD - Rev/Mile |
| Revolutions/Mile @ 45 mph - Rear | - TBD - Rev/Mile |
| Revolutions/Mile @ 45 mph - Spare | - TBD - Rev/Mile |
| SAE Net Horsepower @ RPM | 285 @ 5400 |
| SAE Net Torque @ RPM | 295 @ 4600 |
| Second Gear Ratio (:1) | 2.36 |
| Shock Absorber Diameter - Front | mm |
| Shock Absorber Diameter - Rear | mm |
| Side Door Opening Height | 47.90 in |
| Side Door Opening Width | 44.10 in |
| Side Door Type | Swing-out |
| Sixth Gear Ratio (:1) | 0.67 |
| Spare Tire Capacity | - TBD - lbs |
| Spare Tire Order Code | ZLP |
| Spare Tire Size | LT245/75R16E |
| Spare Wheel Material | Steel |
| Spare Wheel Size | 16 x 6.5 in |
| Spring Capacity - Front | 4100 lbs |
| Spring Capacity - Rear | 5360 lbs |
| Stabilizer Bar Diameter - Front | 1.38 in |
| Steering Ratio (:1), At Lock | 17.2 |
| Steering Ratio (:1), On Center | 17.2 |
| Steering Type | Pwr |
| Step Up Height - Front | 20.30 in |
| Step Up Height - Side | 20.80 in |
| Suspension Type - Front | Coil Spring |
| Suspension Type - Rear | Hypoid Multi-Leaf |
| Third Gear Ratio (:1) | 1.53 |
| Total Cooling System Capacity | 13.6 qts Range: 13.6qts - 14.4qts |
| Trans Description Cont. | Automatic |
| Trans Order Code | MYD |
| Trans Type | 6 |
| Turning Diameter - Curb to Curb | 49.2 ft |
| Turning Diameter - Wall to Wall | ft |
| Vehicle Name | Chevrolet Express Cargo Van |
| Wheelbase | 135.00 in |
| Width, Max w/o mirrors | 79.20 in |
| Wt Distributing Hitch - Max Tongue Wt. | 740 lbs Range: 740lbs - 1000lbs |
| Wt Distributing Hitch - Max Trailer Wt. | 7400 lbs Range: 7400lbs - 10000lbs |
