18,992
27132
CAR CONNECTION INC.
1GCZGTCB9D1121790
CHEVROLET EXPRESS 2013
18992.0000
General Information
Runs by NATURAL GAS!!!! $12,000 UPGRADE
- Standard Equipment
- Optional Equipment
- Additional Specifications
Air bag deactivation switch, frontal, passenger-side (Requires (C6P) 8600 lbs. (3901 kg) GVWR or (C6Y) 9600 lbs. (4354 kg) GVWR. Always use safety belts and the correct child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
Alternator, 105 amps (Not available with CG13405 or CH13405 models.)
Assist handle, front passenger
Audio system, radio provisions only. Includes alarm warning chimes, radio wiring harness, radio antenna and 2 front door speakers
Battery, 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
Body, standard
Brake/transmission shift interlock, for automatic transmissions
Brakes, 4-wheel antilock, 4-wheel disc
Bumpers, front and rear painted Black with step-pad (Deleted when (ZR7) Chrome Appearance Package is ordered.)
Console, engine cover with open storage bin
Cup holders, 3 on the engine console cover
Daytime Running Lamps
Defogger, side windows
Door beams, steel-side
Door, swing-out passenger-side, 60/40 split
Exhaust, aluminized stainless-steel muffler and tailpipe
Floor covering, full-length Black rubberized-vinyl (Not available with (YF2) Ambulance Package or (RFM) rear floor covering delete.)
Frame, full-length box ladder-type
Fuel tank capacity, mid-frame and approximately 31 gallons (117.3L)
Glass, Solar-Ray light-tinted, all windows
Grille, Black composite with single rectangular halogen headlamps (Not available with (ZR7) Chrome Appearance Package.)
GVWR, 9600 lbs. (4354 kg) (Standard on CG33405 or CG33705 models. Reference the Engine/Axle page for availability.)
Headlamps, single halogen (Not available with (ZR7) Chrome Appearance Package.)
Headliner, cloth, over driver and passenger
Instrumentation, analog with speedometer, odometer with trip odometer, fuel level, voltmeter, engine temperature and oil pressure
License plate kit, front
Lighting, interior with 2 dome lights, defeat switch and door handle-activated switches
Mirrors, outside manual, Black
Oil life monitor
Rear axle, 3.42 ratio (Standard on CG13405, CH13405, CG23405, CG23705, CG33405 and CG33705 models. Required with (LU3) Vortec 4.3L V6 MFI engine, (L20) Vortec 4.8L V8 SFI FlexFuel engine, (L96) Vortec 6.0L V8 SFI FlexFuel or (LC8) Gaseous 6.0L V8 SFI engine. Available with (LMF) Vortec 5.3L V8 SFI FlexFuel engine. Reference the Engine/Axle page for availability.)
Rear wheel drive
StabiliTrak, traction assistance and vehicle stability enhancement system
Steering wheel, steel sleeve column with theft-deterrent locking feature, Black
Steering, power
Suspension, front independent with coil springs and stabilizer bar (Requires CG13405, CG23405, CG23705, CG33405 and CG33705 models.)
Suspension, rear hypoid drive axle with multi-leaf springs
Theft-deterrent system, vehicle, PASS-Key III
Transmission oil cooler, external (Included and only available with (L20) Vortec 4.8L V8 SFI FlexFuel engine or (L96) Vortec 6.0L V8 SFI FlexFuel engine.)
Trim panels, hinged rear side doors and hinged rear doors
Visors, driver and front passenger, cloth, padded
Warning tones, headlamp on and key-in-ignition
Wipers, front intermittent wet-arm with pulse washers

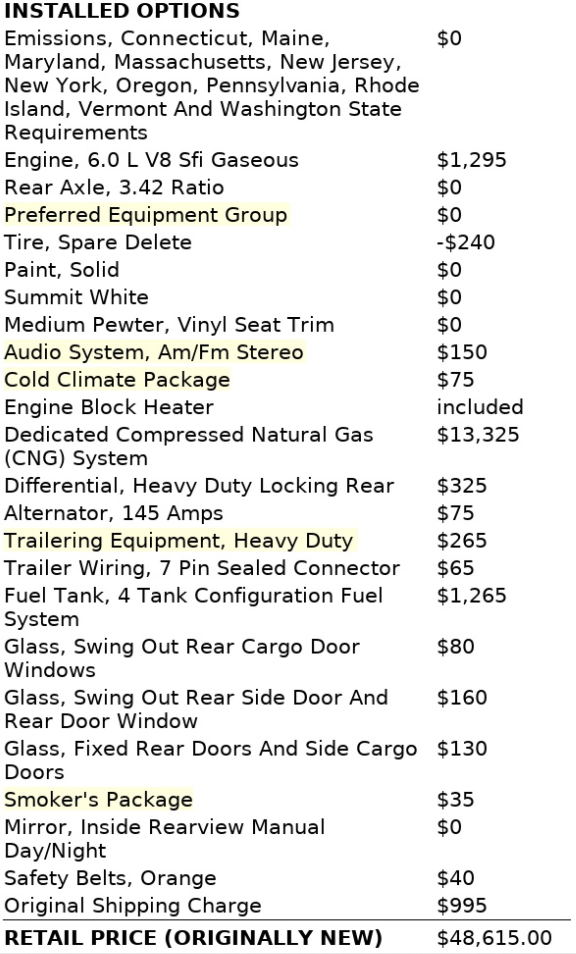

AIR CONDITIONING, SINGLE-ZONE MANUAL
ALTERNATOR, 145 AMPS
AUDIO SYSTEM, AM/FM STEREO
BODY, STANDARD
COLD CLIMATE PACKAGE
DEDICATED COMPRESSED NATURAL GAS (CNG) SYSTEM
DIFFERENTIAL, HEAVY-DUTY LOCKING REAR
DOOR, SWING-OUT PASSENGER-SIDE, 60/40 SPLIT
EMISSIONS, CONNECTICUT, MAINE, MARYLAND, MASSACHUSETTS, NEW JERSEY, NEW YORK, OREGON, PENNSYLVANIA, RHODE ISLAND, VERMONT AND WASHINGTON STATE REQUIREMENTS
ENGINE BLOCK HEATER
ENGINE, 6.0L V8 SFI GASEOUS
FUEL TANK, 4-TANK CONFIGURATION FUEL SYSTEM
GLASS, FIXED REAR DOORS AND SIDE CARGO DOORS
GLASS, SWING-OUT REAR CARGO DOOR WINDOWS
GLASS, SWING-OUT REAR SIDE DOOR AND REAR DOOR WINDOW
MEDIUM PEWTER, VINYL SEAT TRIM
MIRROR, INSIDE REARVIEW MANUAL DAY/NIGHT
PAINT, SOLID
PREFERRED EQUIPMENT GROUP
REAR AXLE, 3.42 RATIO
SAFETY BELTS, ORANGE
SEATING ARRANGEMENT, DRIVER AND FRONT PASSENGER HIGH-BACK BUCKETS,
SEATS, FRONT BUCKET WITH VINYL TRIM
SMOKER'S PACKAGE
SUMMIT WHITE
TIRE, SPARE DELETE
TRAILER WIRING, 7-PIN SEALED CONNECTOR
TRAILERING EQUIPMENT, HEAVY-DUTY
TRANSMISSION, 6-SPEED AUTOMATIC, HEAVY-DUTY, ELECTRONICALLY CONTROLLED
| Aux Fuel Tank Capacity, Approx | 22.0 gal Range: 15.8gal - 22gal |
|---|---|
| Axle Capacity - Front | 4300 lbs |
| Axle Capacity - Rear | 6084 lbs |
| Axle Ratio (:1) - Rear | 3.42 |
| Axle Type - Front | Independent |
| Axle Type - Rear | Full-Floating |
| Body Code | ZW9 |
| Body Style | Cargo Van |
| Brake ABS System | 4-Wheel |
| Brake Type | Pwr |
| Cargo Area Length @ Floor to Console | 153.60 in |
| Cargo Area Length @ Floor to Seat 1 | 124.60 in |
| Cargo Area Width @ Beltline | - TBD - in |
| Cargo Box (Area) Height | 52.90 in |
| Cargo Box Width @ Wheelhousings | 52.70 in |
| Cargo Volume | 239.7 ft³ |
| Curb Weight - Front | 2902 lbs |
| Curb Weight - Rear | 2304 lbs |
| Dead Weight Hitch - Max Tongue Wt. | 500 lbs |
| Dead Weight Hitch - Max Trailer Wt. | 5000 lbs |
| Disc - Front (Yes or ) | Yes |
| Disc - Rear (Yes or ) | Yes |
| Displacement | 6.0L/364 |
| Drivetrain | Rear Wheel Drive |
| Engine Oil Cooler | Yes |
| Engine Order Code | LC8 |
| Engine Type | Compressed Natural Gas V8 |
| Fifth Gear Ratio (:1) | 0.85 |
| First Gear Ratio (:1) | 4.03 |
| Fourth Gear Ratio (:1) | 1.15 |
| Frame Type | Ladder |
| Front Brake Rotor Diam x Thickness | 12.8 x 1.5 in |
| Front Head Room | 39.80 in |
| Front Hip Room | 65.50 in |
| Front Leg Room | 41.30 in |
| Front Shoulder Room | 68.80 in |
| Front Tire Capacity | 2205 lbs |
| Front Tire Order Code | XLP |
| Front Tire Size | LT245/75R16E |
| Front Wheel Material | Steel |
| Front Wheel Size | 16 x 6.5 in |
| Fuel System | Electronic Fuel Injection |
| Fuel Tank Capacity, Approx | 31.0 gal |
| Fuel Tank Location | Under-body & cargo floor |
| Gross Axle Wt Rating - Front | 4600 lbs |
| Gross Axle Wt Rating - Rear | 6084 lbs |
| Gross Combined Wt Rating | 16000 lbs Range: 13000lbs - 16000lbs |
| Gross Vehicle Weight Rating Cap | 9600 lbs |
| Ground Clearance, Front | 8.80 in |
| Ground Clearance, Rear | 7.70 in |
| Ground to Top of Load Floor | 27.80 in |
| Height, Overall | - TBD - in |
|---|---|
| Length, Overall w/rear bumper | 224.10 in |
| Maximum Alternator Capacity (amps) | 145 Range: 105 - 145 |
| Maximum Alternator Watts | - TBD - |
| Overhang, Front | 39.70 in |
| Overhang, Rear w/bumper | - TBD - in |
| Passenger Capacity | 2 Range: 1 - 2 |
| Rear Brake Rotor Diam x Thickness | 13.0 x 1.1 in |
| Rear Door Opening Height | 49.40 in |
| Rear Door Opening Width | 57.00 in |
| Rear Door Type | Dual Swing-out |
| Rear Tire Capacity | 3042 lbs |
| Rear Tire Order Code | YLP |
| Rear Tire Size | LT245/75R16E |
| Rear Wheel Material | Steel |
| Rear Wheel Size | 16 x 6.5 in |
| Reverse Ratio (:1) | 3.06 |
| Revolutions/Mile @ 45 mph - Front | - TBD - Rev/Mile |
| Revolutions/Mile @ 45 mph - Rear | - TBD - Rev/Mile |
| SAE Net Horsepower @ RPM | 282 @ 4800 |
| SAE Net Torque @ RPM | 320 @ 4400 |
| Second Gear Ratio (:1) | 2.36 |
| Shock Absorber Diameter - Front | mm |
| Shock Absorber Diameter - Rear | mm |
| Side Door Opening Height | 47.90 in |
| Side Door Opening Width | 44.10 in |
| Side Door Type | Swing-out |
| Sixth Gear Ratio (:1) | 0.67 |
| Spring Capacity - Front | 4300 lbs |
| Spring Capacity - Rear | 6084 lbs |
| Stabilizer Bar Diameter - Front | 1.38 in |
| Steering Ratio (:1), At Lock | 17.2 |
| Steering Ratio (:1), On Center | 17.2 |
| Steering Type | Pwr |
| Step Up Height - Front | 20.30 in |
| Step Up Height - Side | 20.80 in |
| Suspension Type - Front | Coil Spring |
| Suspension Type - Rear | Hypoid Multi-Leaf |
| Third Gear Ratio (:1) | 1.53 |
| Total Cooling System Capacity | - TBD - qts Range: 13.6qts - 14.4qts |
| Trans Description Cont. | Automatic |
| Trans Order Code | MYD |
| Trans Type | 6 |
| Turning Diameter - Curb to Curb | 49.2 ft |
| Turning Diameter - Wall to Wall | ft |
| Vehicle Name | Chevrolet Express Cargo Van |
| Wheelbase | 135.00 in |
| Width, Max w/o mirrors | 79.20 in |
| Wt Distributing Hitch - Max Tongue Wt. | 1470 lbs Range: 1110lbs - 1500lbs |
| Wt Distributing Hitch - Max Trailer Wt. | 9800 lbs Range: 7400lbs - 10000lbs |
